1310/1550nm Tunable Laser

Features:

•    Optical Sensing application

•    Narrow Spectrum Linewidth

•    1~6nm continuous tuning Range @1Hz

1.   Absolute Maximum Ratings

Module performance is not guaranteed beyond the range. Exceeding the

limits below may damage the module permanently.

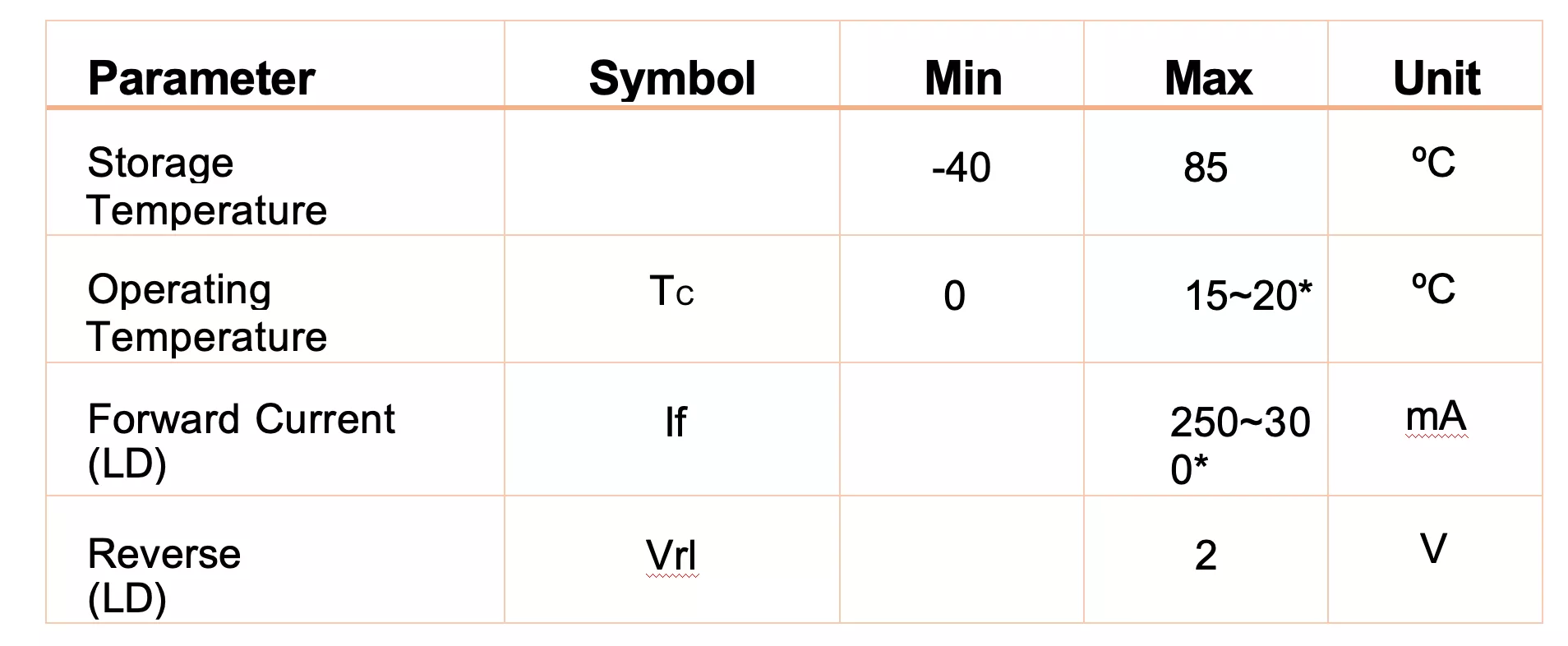

Table 1-- Absolute maximum ratings

* Operating Tmax<20deg, triangular driving current 80~180mA, tuning range ~2nm@1Hz,   ~1nm@10Hz

* Operating Tmax<15deg, triangular driving current 70~270mA, tuning range ~6nm@1Hz

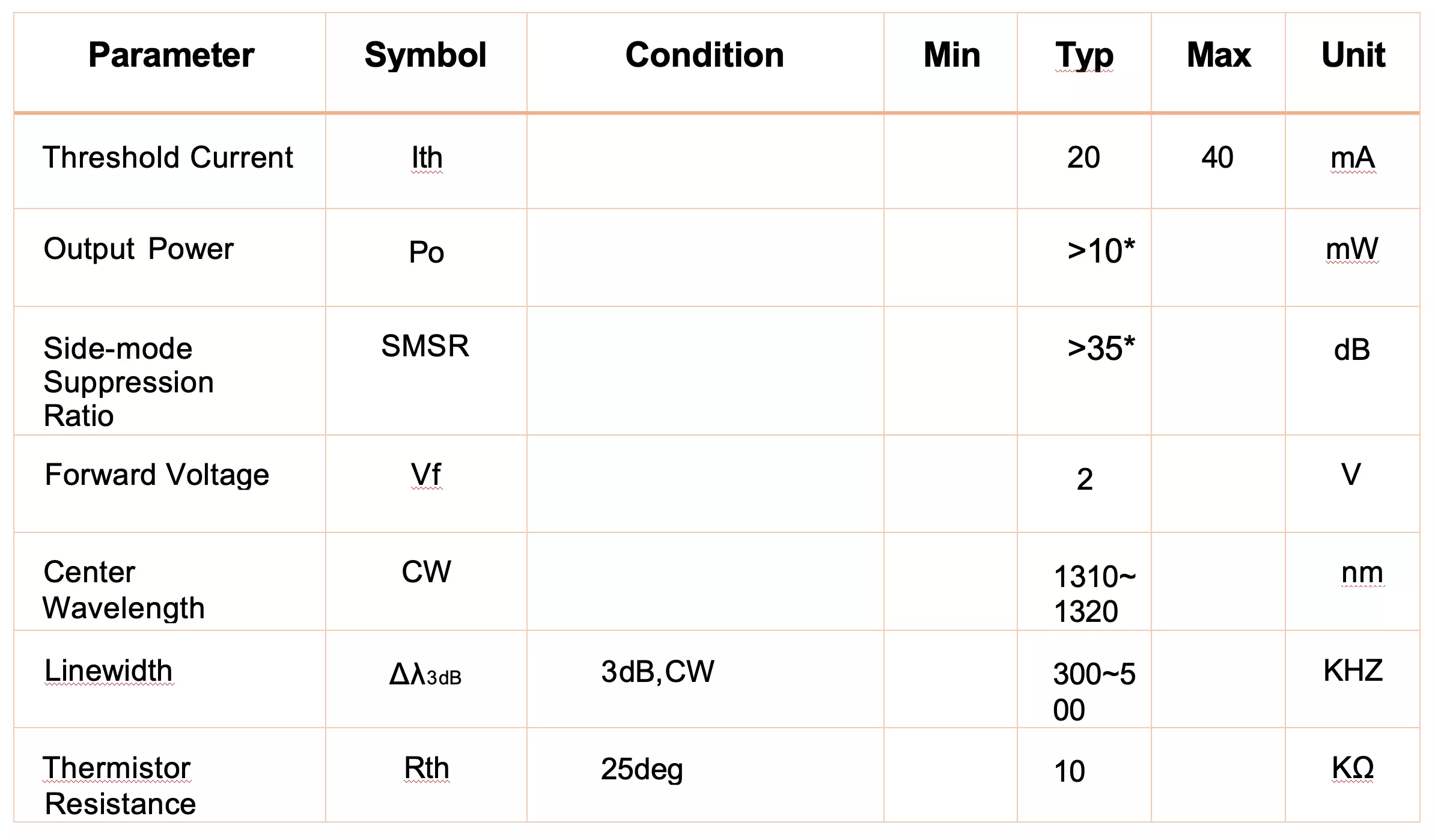

2.   Optical         Electrical Characteristics

-- Optical and Electrical Characteristics (Tc=20°C, unless otherwise specified)

3.   Mechanical Dimensions

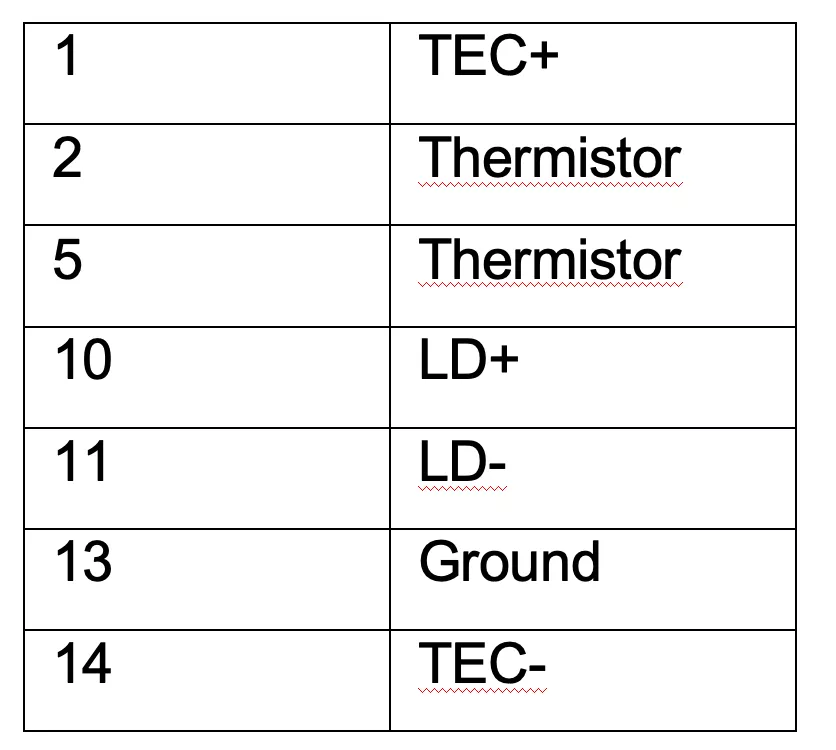

Standard 14pin butterfly package

4.   Ordering Information

FC/APC Single mode fiber or PM(polarization maintaining) fiber pigtail can be chosen.
